油煙管

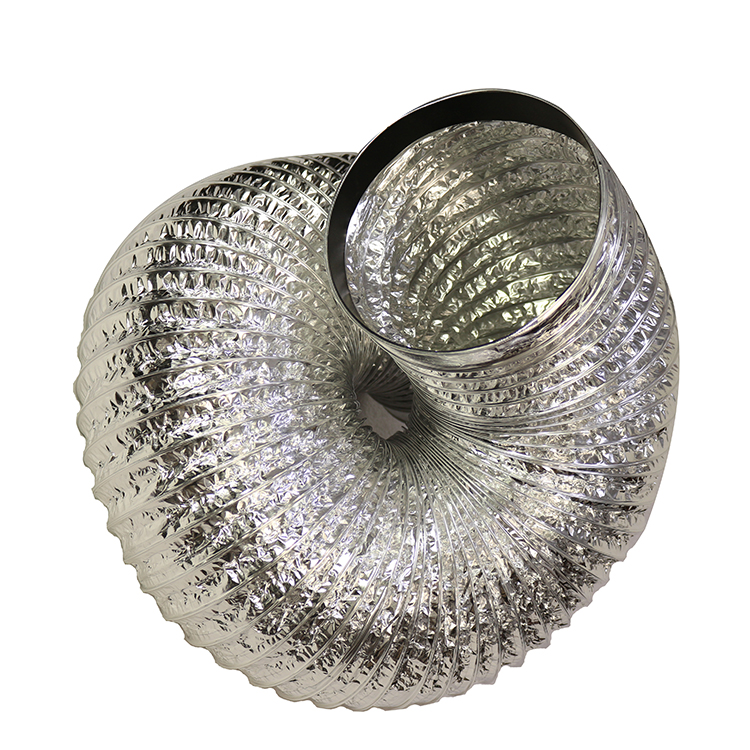

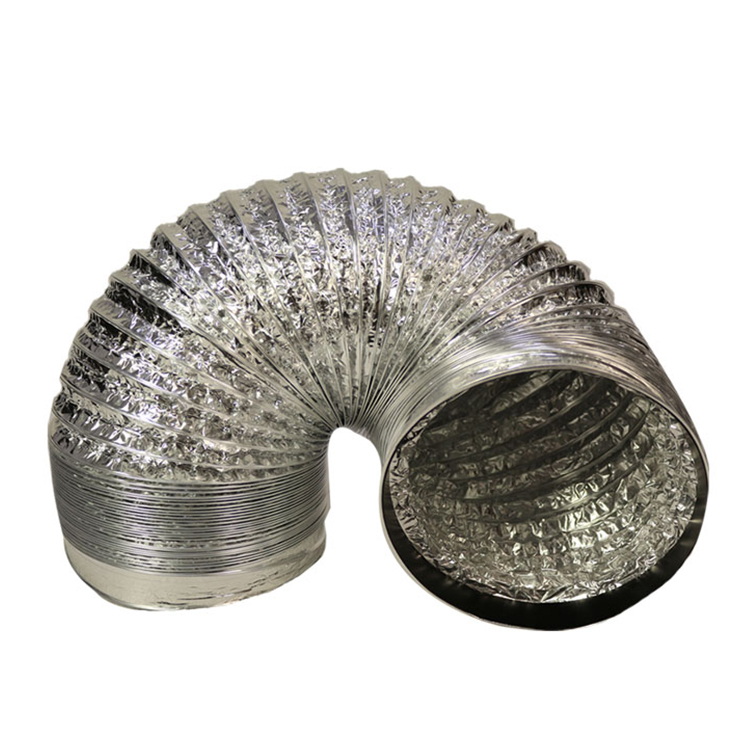

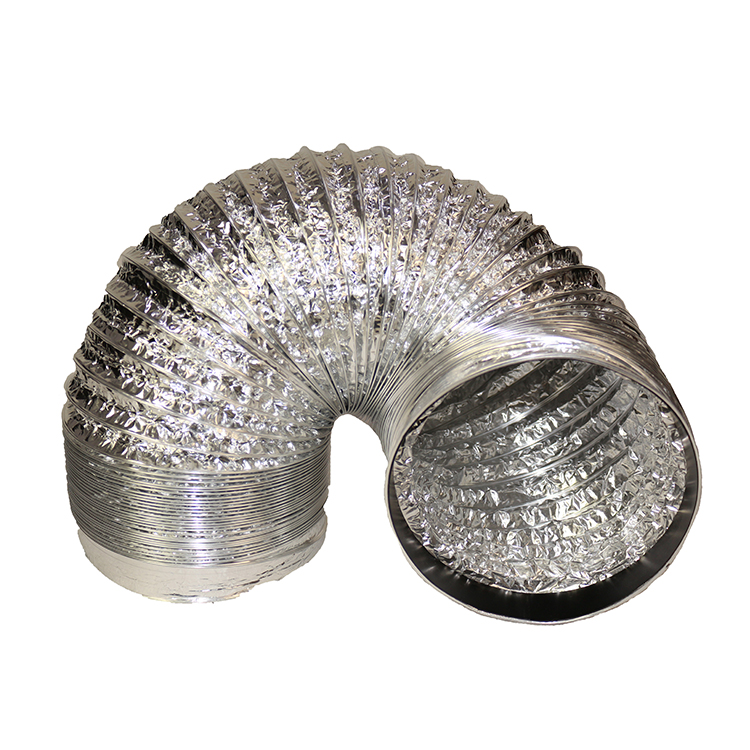

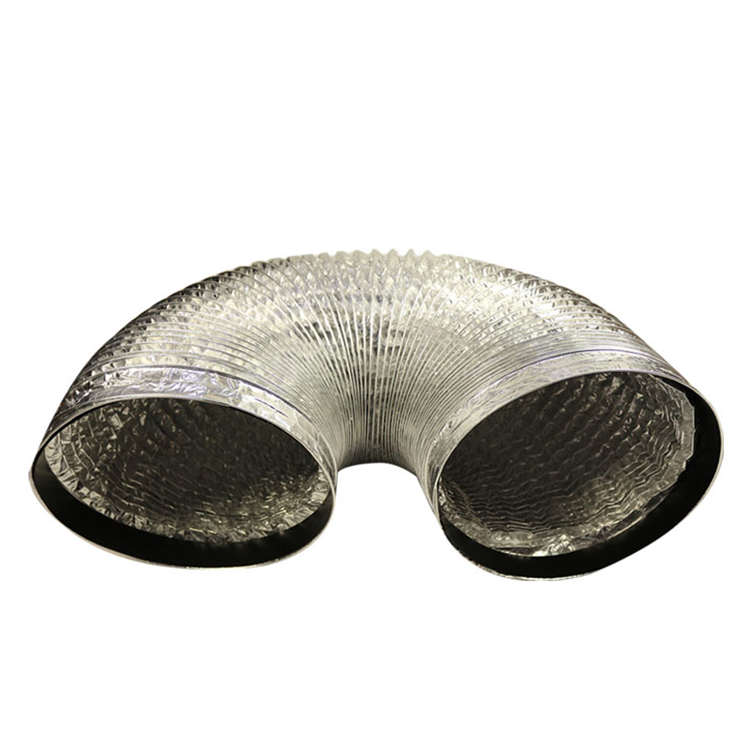

Kitchen Ventilation Flexible Duct

煙管

Product Code	XY-103	產品編碼	XY-103
Construction	2 Aluminum Foil + 1 PET+2PVC Paster	材料	2層鋁箔+1層PET +2個PVC貼片

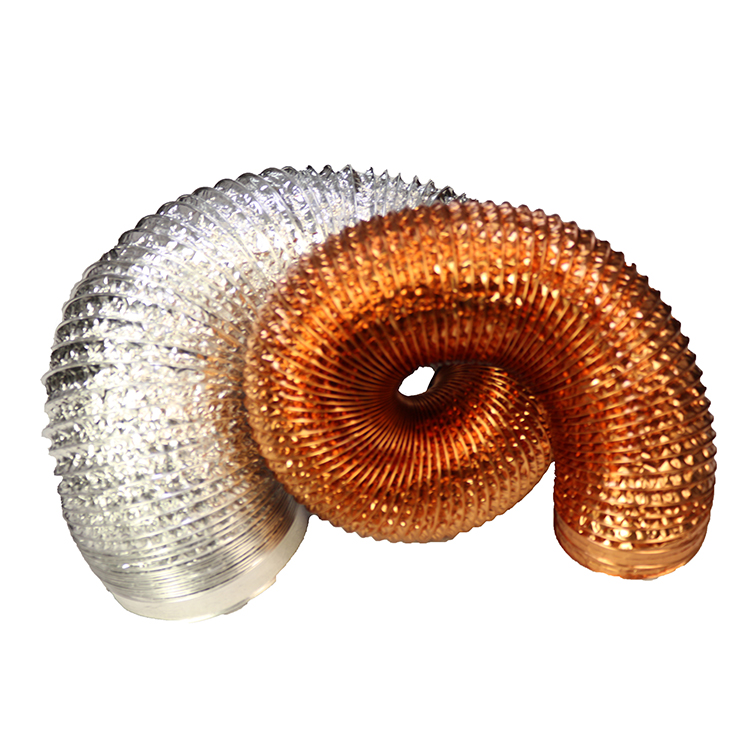

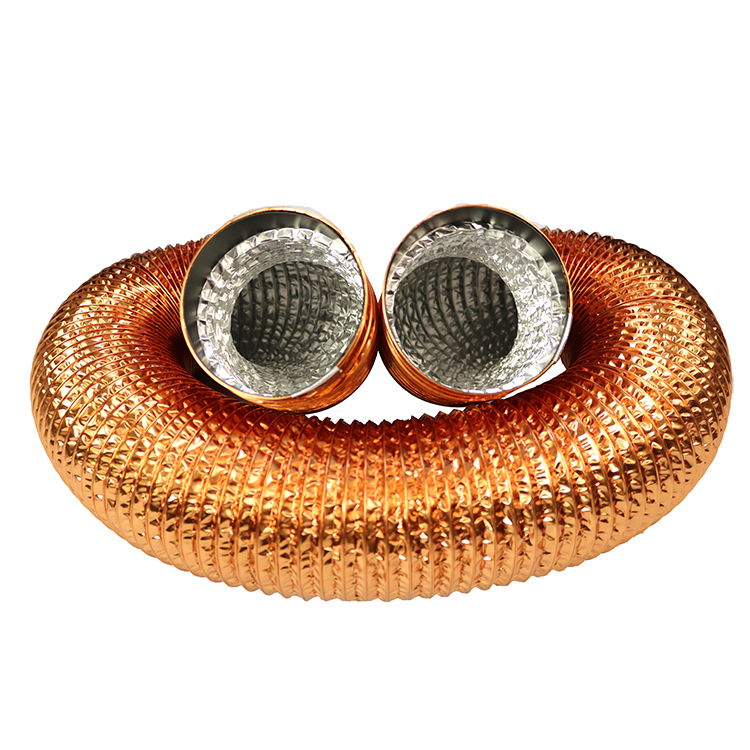

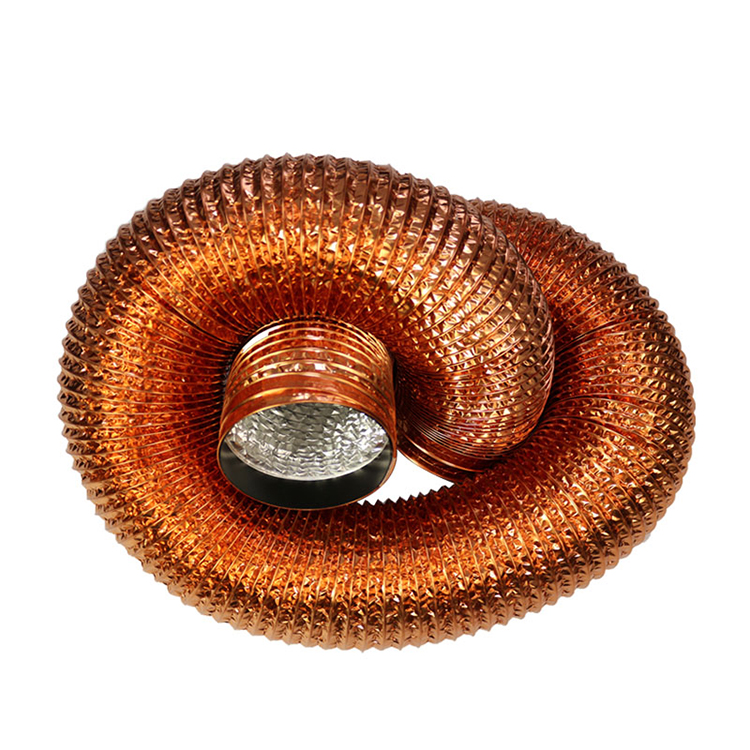

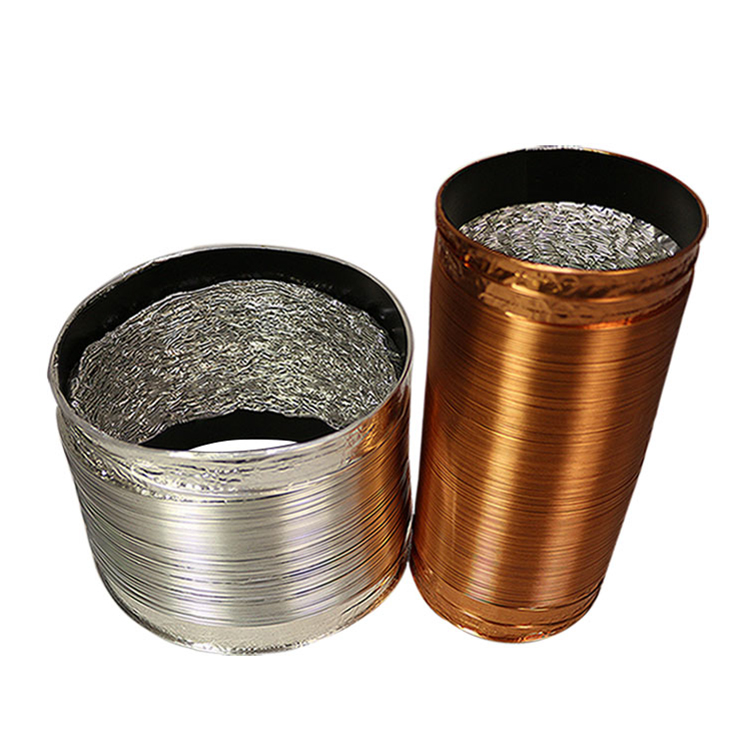

Color	Silver/Copper	顏色	銀色/銅色
AvailableDiameter	40mm-650mm (1.5"-25")	直徑范圍	40mm-650mm (1.5"-25")
Carbon Steel Wire Diameter	0.6mm-2.5mm	鋼絲直徑	0.6mm-2.5mm
StandardLength	5m(Max)	標準長度	5m(Max)
Thickness	0.032mm-0.035mm	厚度	0.032mm-0.035mm
Fire Resistance	Class A2(Max)	防火等級	A2級，難燃
CompressRatio	1: 25	壓縮比	1：25
Temperature Range	-30℃/+150℃	溫度范圍	-30℃/+150℃
Operating Pressure	3000Pa	最大壓力	3000Pa
Maximum Air Velocity	30m/s	最大風速	30m/s

抽油煙管主要由雙面復合鋁箔（兩層鋁箔中間加PET復合而成）纏繞在優質高彈性螺旋形鋼絲制做而成。具有柔軟性好，抽風聲音比普通塑料煙管要少的多，阻燃性好，不沾油，使用壽命長，外型高檔與不銹鋼抽油煙機搭配更合理完美。

Kitchen Ventilation Flexible Duct is made of spiral steel wire laminated with 2 Layers aluminum flexible duct. It has good flexibility,good fire retardant, non-stick oil, convulsions sound is less than ordinary plastic pipe,and long service life. It will be more reasonable and perfect if its high-grade appearance match with Range hoods.
